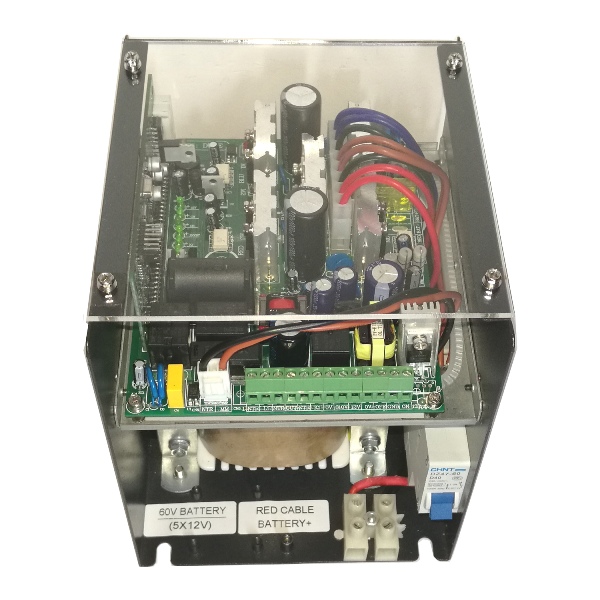

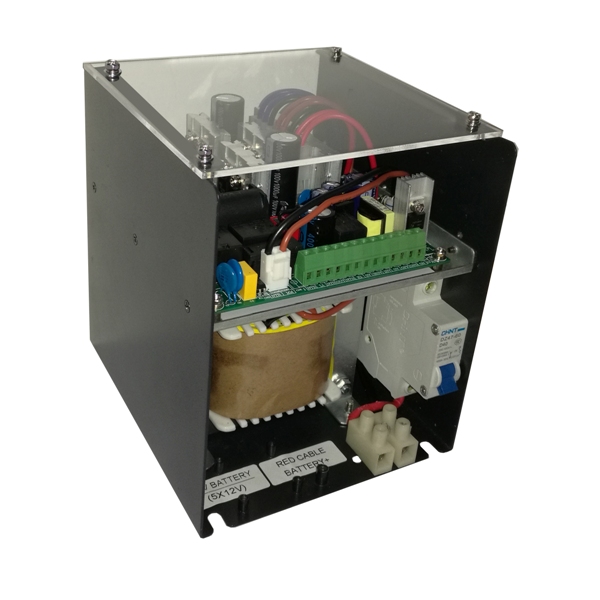

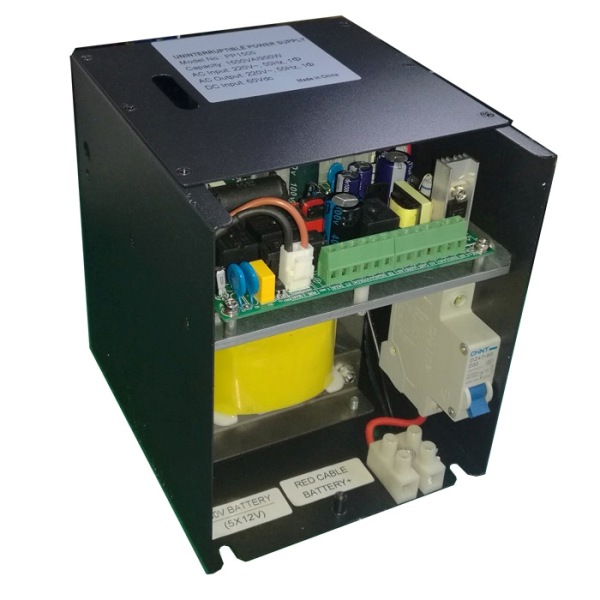

60Vdc Elevator Automatic Rescue Device ( ARD ), Elevator UPS, Elevator Emergency Power
I. GENERAL:
1. This device is mainly an UPS supplied by a 60Vdc 7AH batteries (or other DC Voltage model such as 48Vdc / 72Vdc / 96Vdc / 120Vdc), with some additional functions.
2. AoKu ARD Series can be used for both synchronous and asynchronous motor drives.
3. The Main part of the AoKu ARD Series device is a “220Vac, 50Hz/60Hz UPS” which supplies power to the main lift control panel, including the control circuits, the brake and the door unit, during a power failure. In AoKu ARD Elevator Rescue Device, the main power to the motor drive inverter is supplied directly from the batteries with voltage 48Vdc / 60Vdc / 72Vdc / 96Vdc / 120Vdc depends on the model.
4. This device can be used for emergency evacuation operation for all elevator panels with inverters of all power ratings, because the inverters DC buses are directly derived from the batteries.
II. TECHNICAL SPECIFICATIONS:
Model | AoKu ARD-1000VA | AoKu ARD-1500VA | AoKu ARD-2000VA |
Input | |||
AC Voltage | 220Vac Single Phase + GND 50/60Hz (Range: 145~275Vac) | ||
DC Voltage | 60Vdc (Optional: 48Vdc, 72Vdc, 96Vdc, 120Vdc) | ||
DC, AC Start | Yes | ||
Output | |||
AC Output Voltage: | 220Vac, 50Hz / 60Hz | ||
AC Output Wave Form | Pure Sine wave (Mains); Pure Sine Wave (Battery) | ||
K1 Delayed Output | 220Vac, 5S (Jumper 13 - 14 On Control PCB No. BINV-CON) 220Vac, 10s (Jumper 5 - 6 On Control PCB No. BINV-CON) 220Vac, 20s (Jumper 3 - 4 On Control PCB No. BINV-CON) | ||
Transfer time | < 10 ms | ||
DC Output 1 (Optional) | 12Vdc (For the Telecom) | ||
DC Output 2 (Optional) | 310Vdc (For Inverter control Circuit such as Yaskawa L1000A CN19.) | ||
Battery | |||
Battery Type | Sealed Maintenance Free Lead Acid Battery | ||
Charging | 60Vdc (48Vdc, 72Vdc, 96Vdc, 120Vdc depends on the model) | ||
DC Configuration | 60V = 5 x 12V (48V=4x12V, 72V=6x12V, 96V=8x12V, 120V=10x12V) | ||
Recharge | ≥ 90% Capacity after 8 Hours | ||
Backup time | Depend on Battery capacity Automatic Off after 5 Minutes in Evacuation Mode | ||
Other Feathers | |||
Transformer | Yes | ||
Noise | < 45 db (1m) | ||
Temperature | 0~45 ℃ | ||
Humitity | 20 % ~ 90% (Non-Condensing) | ||
Dimensions | 147 x 170 x 178 (mm, L x W x H) | ||
Remarks: Specifications are subject to change without notice.
