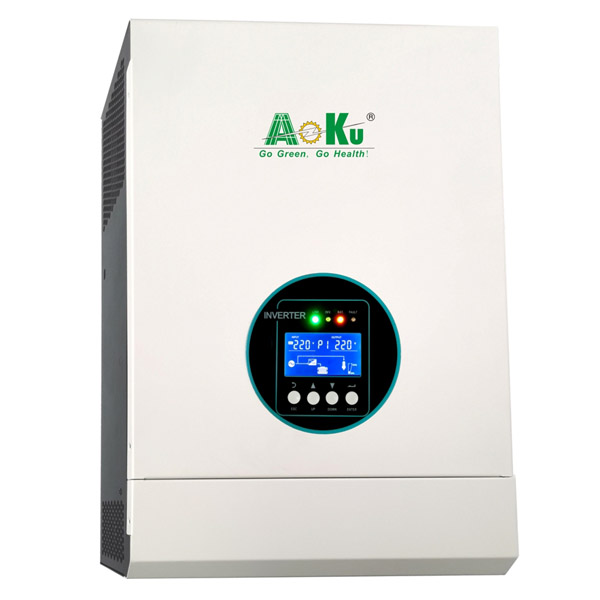

Off-Grid Solar Inverter 5KW
Off-Grid Solar Inverter
SMART VMH Series 5KW
Introduction:

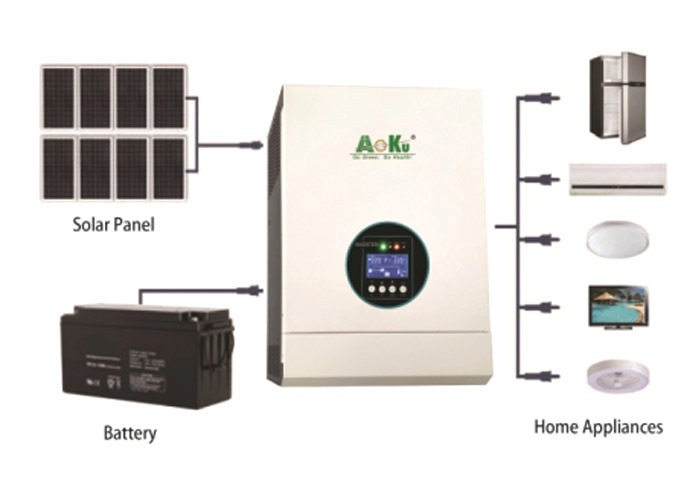

The SMART VMH series is an integrated control machine of pure sine wave high-frequency solar inverter. The controller adopts advanced MPPT calculation method and intelligent battery management to ensure the maximum energy acquisition. With a wide PV input range, the inverter can be carried without battery when the energy is sufficient. It has the advantages of high-power density, simple operation, high overall efficiency, and small no-load loss. The inverter integrates the 3-in-1 function of solar energy, mains power and battery, which can be used for lighting, computers, televisions and other household appliances and electric tools, as well as small-scale
industrial electrical equipment.
Feature:
• Pure sine wave output
• 450V wide PV circuit voltage can work for the load without battery connected (when the energy is sufficient)
• Built in MPPT solar controller

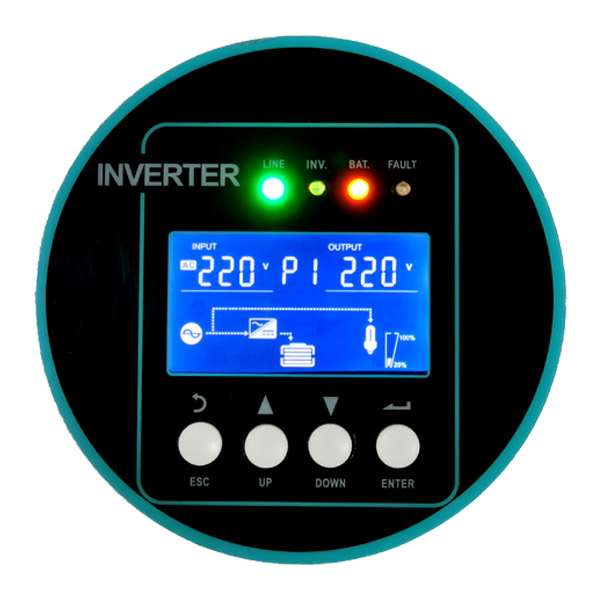

• Configurable AC/Solar input priority and output priority via LCD settings.
• Wide and selectable AC input voltage range
• Multiple protections of battery over discharge, overload, over temperature, short circuit
• Automatically turn on after the mains is restored.
• Cold start function

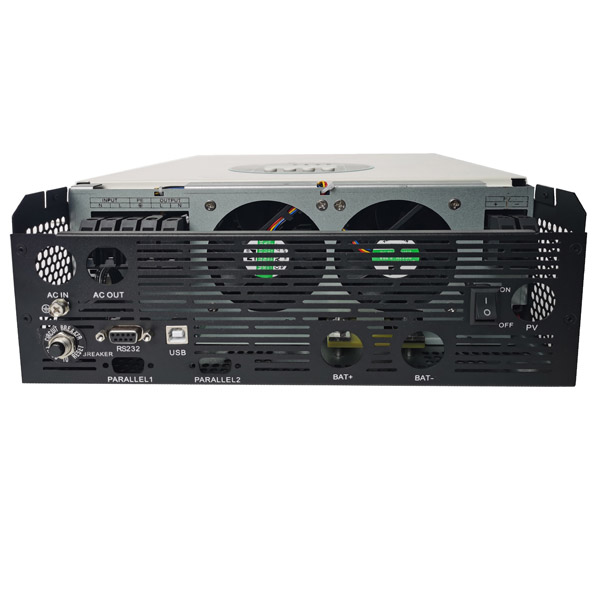

• USB and RS232 monitoring functions
Specifications:
MODEL | Smart VMH 3024 | Smart VMH 3048 | Smart VMH 5048 |
Rated Capacity | 3000VA/3000W | 5000VA/5000W | |
INPUT | |||
Input Format | L+N+PE | ||
Rated Input Voltage | 208/220/230/240VAC | ||
Voltage Range | 170~280VAC(For Personal Computers); 90~280VAC(For Home Appliances) | ||
Frequency Range | 50Hz/60Hz(Auto Sensing) | ||
OUTPUT | |||
Output Format | L+N+PE | ||
Rated Output Voltage | 208/220/230/240VAC±5% | ||
Output Frequency | 50/60Hz±0.1% | ||
Waveform | Pure Sine Wave | ||
Transfer Time | 10ms(For Personal Computers)，10ms(For Home Appliances) | ||
Peak Power | 6000VA | 6000VA | 10000VA |
Overload Capacity | Battery Mode: 1min@102%~110% Load 10s@110%~130%Load | ||
Peak Efficiency (Battery Mode) | >93% | >94% | >94% |
BATTERY | |||
Rated Voltage | 24 VDC | 48 VDC | 48 VDC |
Constant Charging Voltage (Can Be Set) | 28.2 VDC | 56.4 VDC | 56.4 VDC |
Float Charging Voltage (Can Be Set) | 27 VDC | 54 VDC | 54 VDC |
SOLAR CHARGER & AC CHARGER | |||
Solar Charger Type | MPPT | MPPT | MPPT |
PV Maximum Input Power | 4000W | 4000W | 5500W |
MPPT Tracking Range | 120~430 VDC | 120~430 VDC | 120~430 VDC |
Maximum PV Input Voltage | 450 VDC | 450 VDC | 450 VDC |
Maximum PV Charge Current | 80 A | 80 A | 80 A |
Maximum Mains Charging Current | 60 A | 60 A | 80 A |
Maximum Charging Current | 80 A | 80 A | 80 A |
COMMUNICATION INTERFACE | |||
RS232 | 5PIN/Pitch2.0mm，Baud Rate 2400 | ||
Expansion Slot Communication Interface | 2×5PIN/Pitch2.54mm，Lithium Battery BMS Communication Card, WIFI Card, Dry Contact card, Etc. | ||
Parallel Interface | No Parallel | With Parallel | |
Environmental Parameters | |||
Operating Ambient Temperature | 0~40℃ | ||
Operating Environment Humidity | 20%~95%（Non-Condensing） | ||
Storage Temperature | -15~60℃ | ||
Altitude | Altitude Should Not Exceed 1000m, Derating Above 1000m, Maximum 4000m, Refer to IEC62040 | ||
Noise | ≤50db | ||
PHYSICAL PARAMETERS | |||
D×W×H(mm) | 110×300×450 | ||
Weight (for Reference) | 7kg | 7kg | 7.8kg |
STANDARDS | EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1 | ||
